Polyurethane sealing glue is used between media and frames to better prevent the leakage and damage. Benefit to environmental protection by using excellent ABS frame as no toxic gas is produced when being burned. With good advantages among like products, larger effective filtration area, lower resistance and higher dust holding capacity.
1 Work as the main filter in the Gas Turbine Air Intake System.
2 High-humidity ventilation system.
3 Ventilation systems where has large air output and narrow installation space.
1 High efficiency microfiber glass medium for Gas Turbine.
2 Highest dust holding capacity, long filter life time and no fiber discharge.

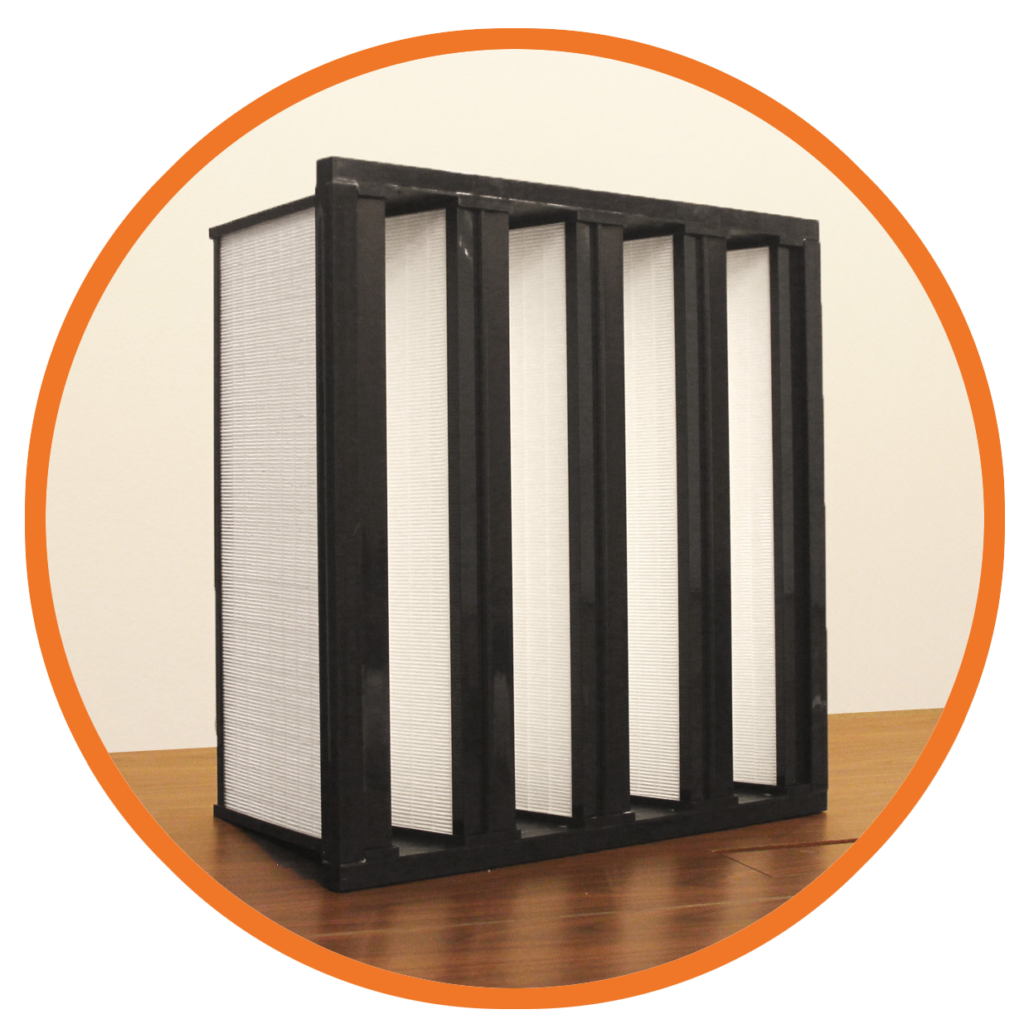

3 V-shape mini pleat design and metal free robust and sturdy plastic frame.
Fully polyurethane sealed in frame, thus leakage free.
5 Efficiency class: M6(F6), F7, F8, F9 (black frame), H11, H13 (blue frame).
6 Waterproof media as a Salt Barrier (preventing salt water leaching)
Max. Humidity: 100%RH
1 The frame and cell sides are self-manufactured using excellent roller formers (Quality is closely monitored and controlled)
2 U-Shape unique interlocked header design with no welding and no sharp corners (Ensures no dirty air by-pass around the filter) + (Promotes easy and safe handling during installation)
3 The back of the filter is supported with X-shape steel bars (Provides additional support to the filter)
